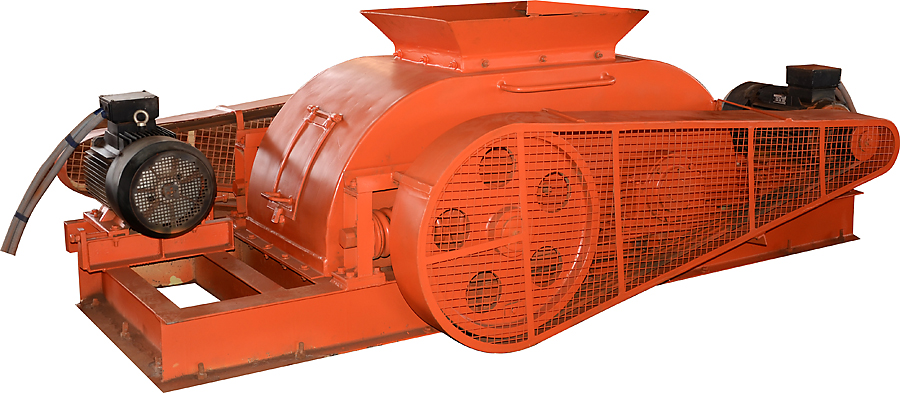

Heavy duty roller mills to crush the clay before shaping in to finished products. This is an important process that determines the quality of the final product.
Defining Characteristics:
- Both rollers are made with wear resistant steel
- Over designed bearings to withstand uneven and shock loads
- One roller can be spring loaded
- Adjustable gap between rollers
- Mechanically loaded scrappers
- Machine is supplied with motors, pulleys, V- belts and pulley guards
| Model | GM450 | GM600 | GM800 |
| Roller Diameter (mm) | 450 | 600 | 800 |
| Roller width (mm) | 500 | 600 | 600 |
| Total Weight (kg) | 1430 | 2810 | 3810 |
| Over All Dimension (LxWxH) in mm | 2300 X 1240 X 720 | 2540 X 1420 X 1060 | 3300 X 1540 X 1260 |
| Motor Power | 2 x 7.5kW | 2 x 11kW | 2 x 15kW |
